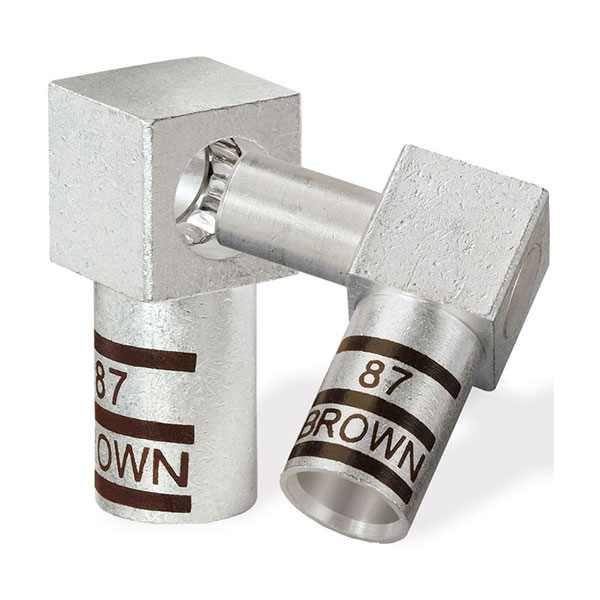

Color-Keyed Motor Lead Disconnects

Enables fast and easy change-out of electric motors without bolting, taping or loose connections.

Helps reduce costly downtime
ABB Installation Products’ Color-Keyed® motor lead disconnects speed up motor installation and change-out, helping reduce downtime in water and wastewater processing, food and beverage processing, oil and gas, power generation, renewable energy and other applications using electric motors.

Key benefits

Color-Keyed motor lead disconnects are easy to use. Simply crimp the male and female disconnects onto your wires, plug them together, slide on insulating boot and secure with two Ty-Rap® cable ties.

UL listed – Complies with industry safety standards
Complete line – 600 V two- and three-wire and 5 kV applications with a wire size range of #16 AWG to 500 kcmil
Quick connections – Eliminates nuts, bolts and washers
Reliable insulation – Eliminates excessive insulating tape. The reusable insulating boot creates a total assembly small enough for tight motor housings
Labor savings – Fast snap-together assembly
Quick disconnect – Eliminates the need for knife-cutting melted tape, reducing the risk of cutting wire insulation and helping minimize installer injury and motor downtime

Applications

Maintenance, repair and operations (MRO)
Wastewater
Food and beverage
Oil and gas
Power generation
Renewable energy
Mining
Conveyor systems
Aggregate handling systems

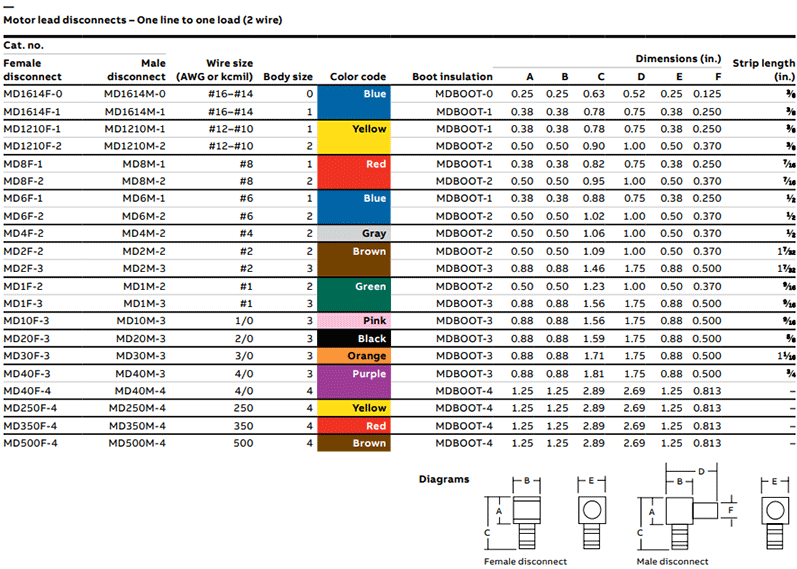

Technical data

Constructed of high-conductivity copper with tin plating, Color-Keyed motor lead disconnects meet or exceed the electrical and mechanical performance of bolted connections — without the hassles. Female disconnects feature a beryllium copper interface band for dependable connections.
