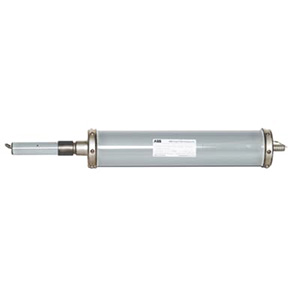

CLXP Outdoor Current-limiting Fuse
The CLXP individual capacitor fuse has a high-energy capability. It is for application in outdoor capacitor banks with many parallel capacitor units. 5.5-18.2 kV, 15-43 A.
Benefits
- Ability to disconnect a failed capacitor unit from the circuit
- Small dimensions support both application and storage
- Reliable operation guaranteed by proven design
- Applicable in outdoor capacitor banks with many parallel capacitor units
Features
- CLXP voltage ratings are from 2.5 kV to 25 kV max AC
- Interrupting rating of 60,000 amperes asymmetrical
- The CLXP fuse’s maximum parallel capacitor discharge energy rating is unlimited
- Applicable to banks with 20,000 Joules of parallel energy or less, this is equivalent to 6000 KVAR
- The CLXP fuse must be used with ejector springs
- The CLXP cannot be used in inductively limited fault applications
