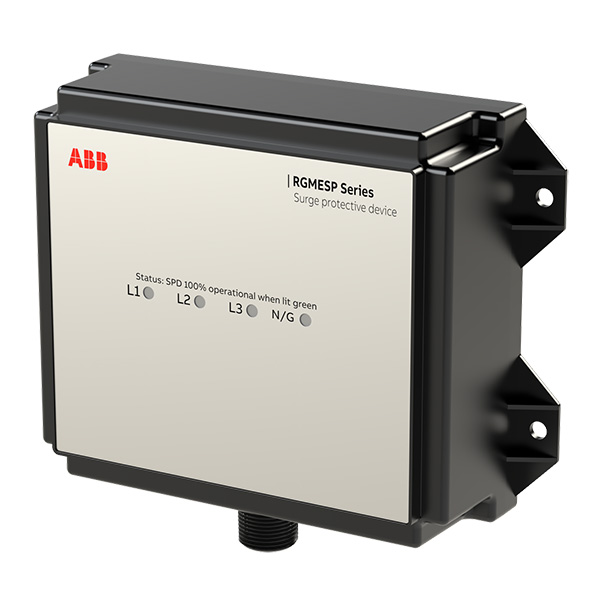

ReliaGear RGMESP
The ReliaGear® RGMESP Series SPDs offer robust integrally mounted surge protection with emphasis on performance, safer operation, user-friendly diagnostics, and ease of installation. Includes Advanced Thermally Protected MOV (ATPMOV) for surge energy diversion and metal film capacitors for filtering low-level transient voltages and electrical noise.
Features and benefits
- Dry contacts for remote monitoring
- Indicating lights inform proper functioning of device
- Orange service light to demonstrate early warning for replacement
- Audible alarm during surge event
- NEMA 4 polycarbonate enclosure
- Light construction (5.1 lbs)
- Suitable to be directly mounted in power panels
- Injection molded design with ¾” threaded nipple with locknut
Technical specifications
- I-nominal (In) 20 kA, SCCR 200 kA
- 7-Mode protection (L-N, L-G, N-G, L-L)
Certifications and standards
- UL NEMA Type 4 Enclosure Environmental rating
- UL 1449, 5th ed Type 2 (cULus) and UL 1283
- UL1283 Filtering available on all Type 2 configurations
- UL 1449 5th Ed. – Listed, Open Type—Mil-Std-220C
- UL 1283 Listed EMI/RFI Filter—ANSI/NFPA 70 (Art. 242)
- UL 96A – Meets SPD criteria—ANSI/IEEE C62.41 & .45
- cUL Listed to UL 1449 & CSA C22.2—ANSI/IEEE C62.62 & .72
- IEC 61643-11
Applications
Hospitals, data centers, chemical plants, nuclear plants, or any other critical power applications.
